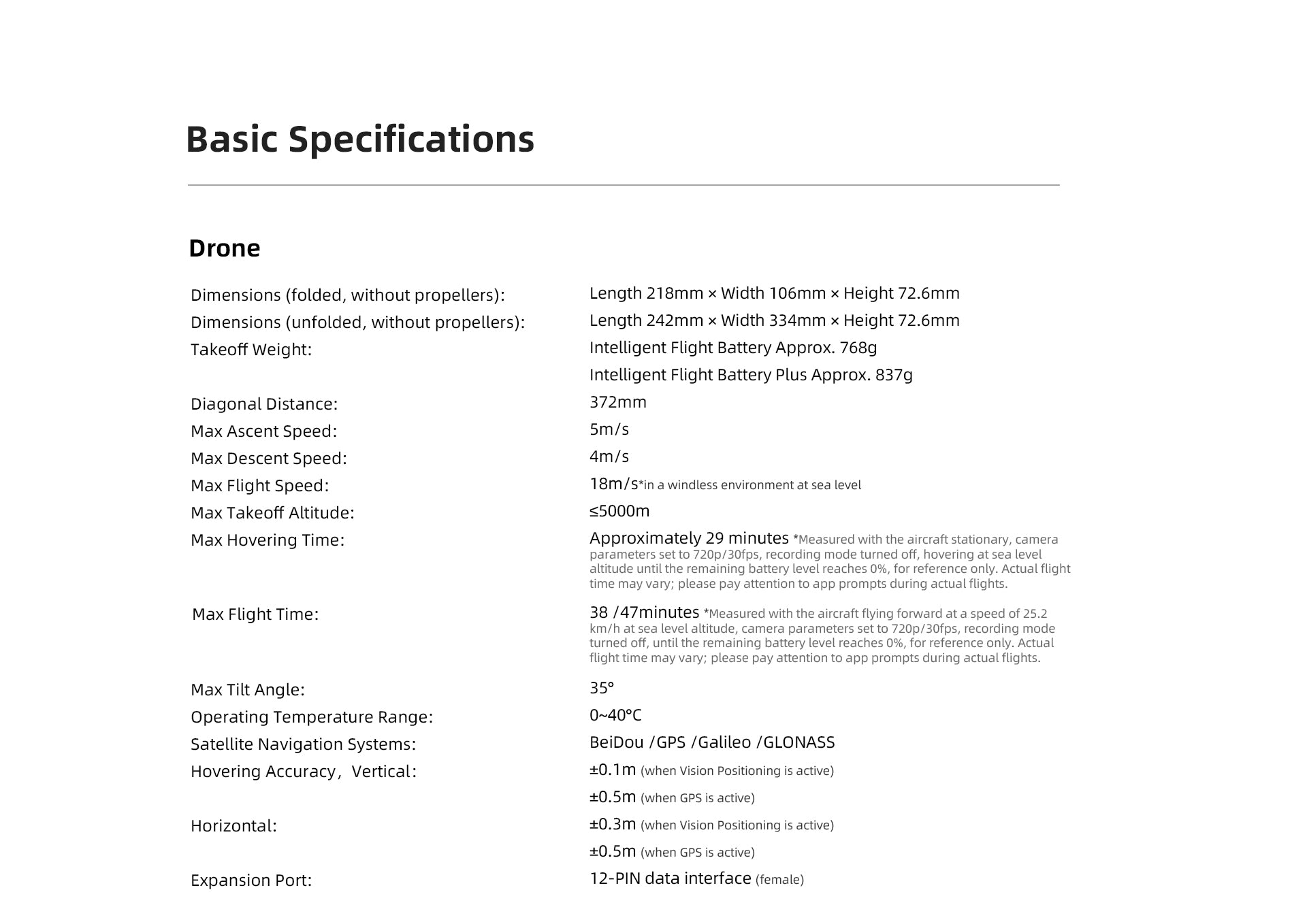

FIMI X8T Specifications:

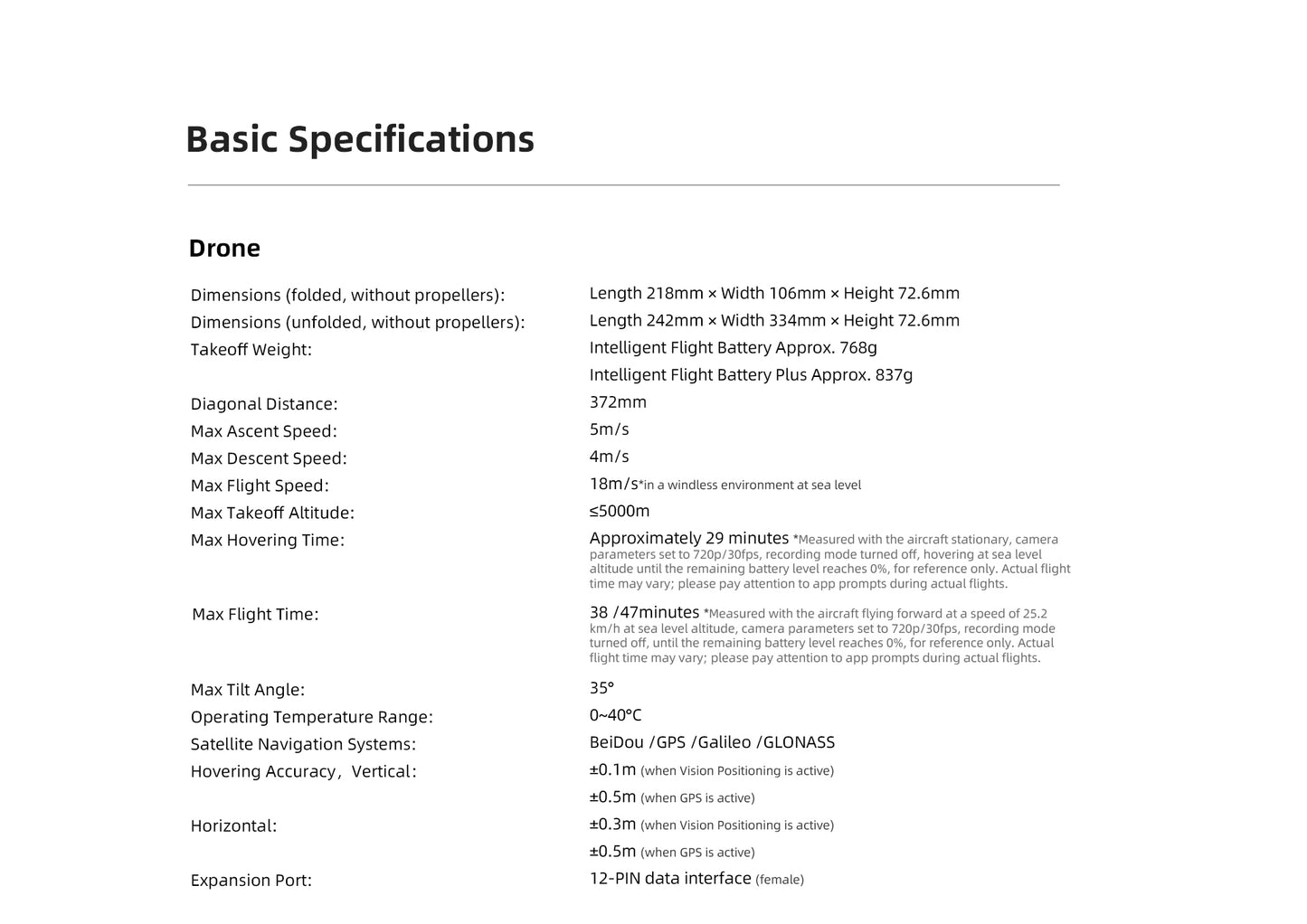

Drone:
Dimensions (folded, without propellers): Length 204mm × Width 106mm × Height 72.6mm
Dimensions (unfolded, without propellers): Length 242mm × Width 334mm × Height 72.6mm
Takeoff Weight: Approx.750g
Diagonal Distance: 372mm
Max Ascent Speed: 5m/s
Max Descent Speed: 4m/s
Max Flight Speed: 18m/s *In a windless environment at sea level
Max Takeoff Altitude: ≤5000m
Max Hovering Time: Approximately 29 minutes *Measured with the aircraft stationary, camera parameters set to 720p/30fps, recording mode turned off, hovering at sea level altitude until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.
Max Flight Time: 38/47 minutes *Measured with the aircraft flying forward at a speed of 25.2 km/h at sea level altitude, camera parameters set to 720p/30fps, recording mode turned off, until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.
Max Tilt Angle: 35°
Max Wind Speed Resistance: 12m/s
Operating Temperature Range: 0~40°C

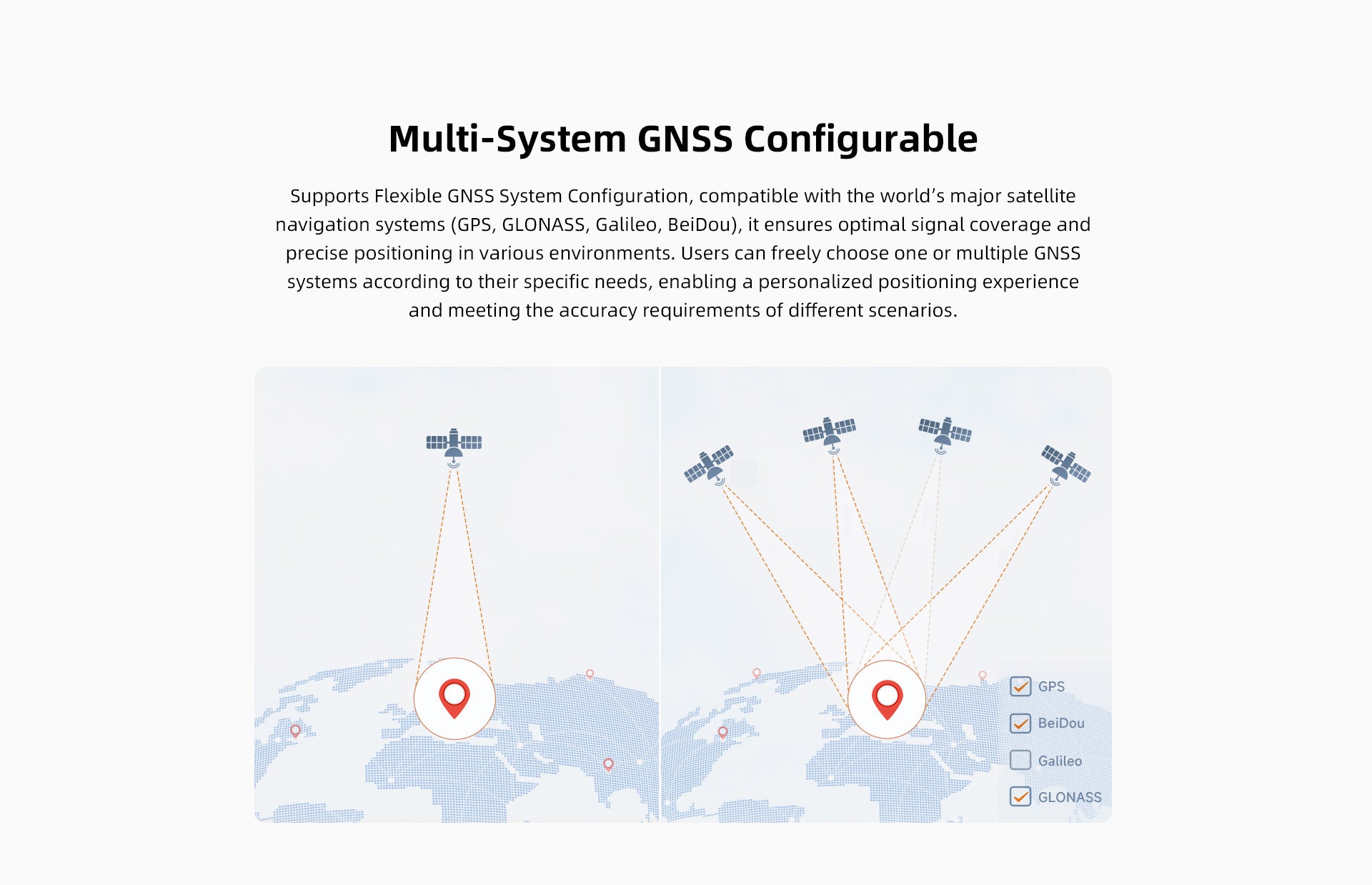

Satellite Navigation Systems: GPS/Galileo/GLONASS
Hovering Accuracy：Vertical: ±0.1m (when Vision Positioning is active); ±0.5m(when GPS is active)
Horizontal: ±0.3m (when Vision Positioning is active); ±0.5m (when GPS is active)

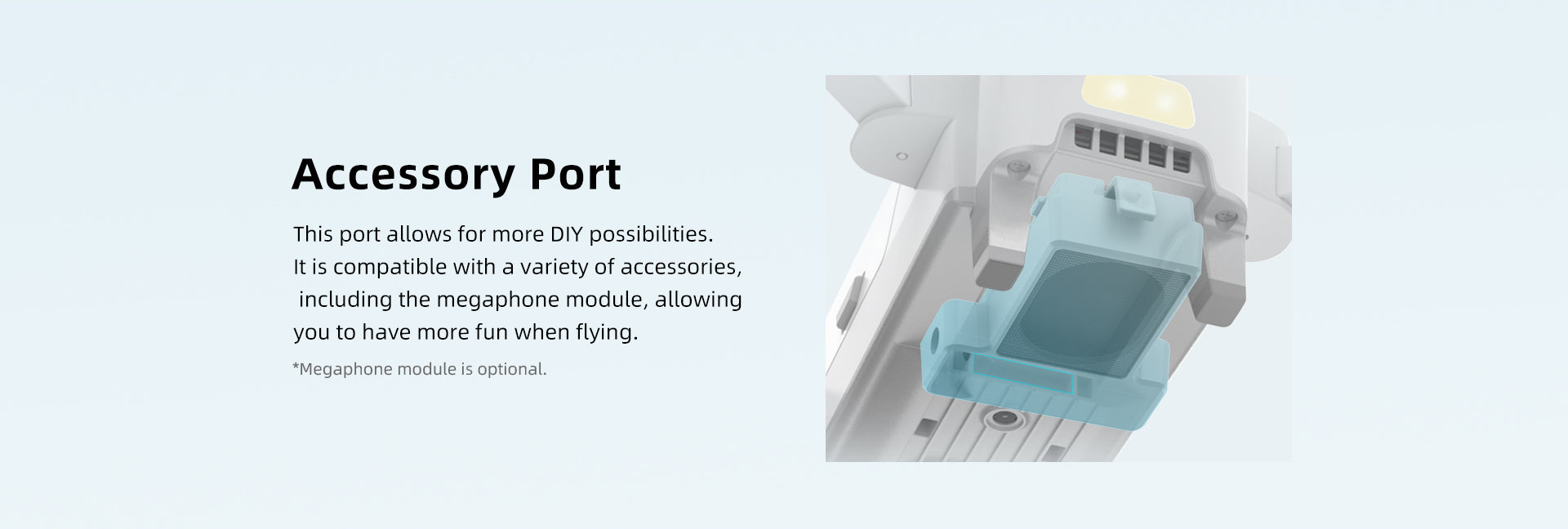

Expansion Port: 12-PIN data interface (female)

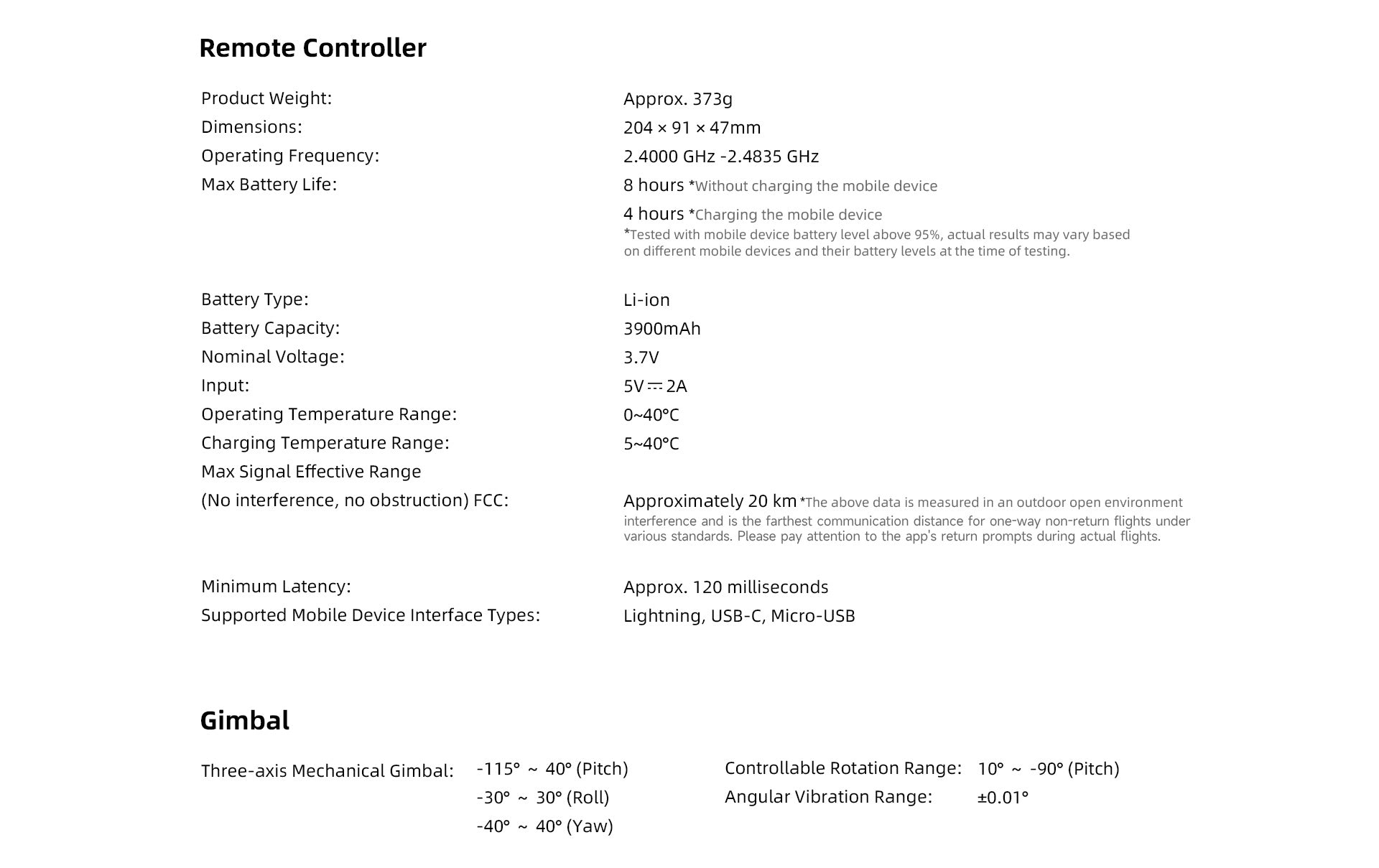

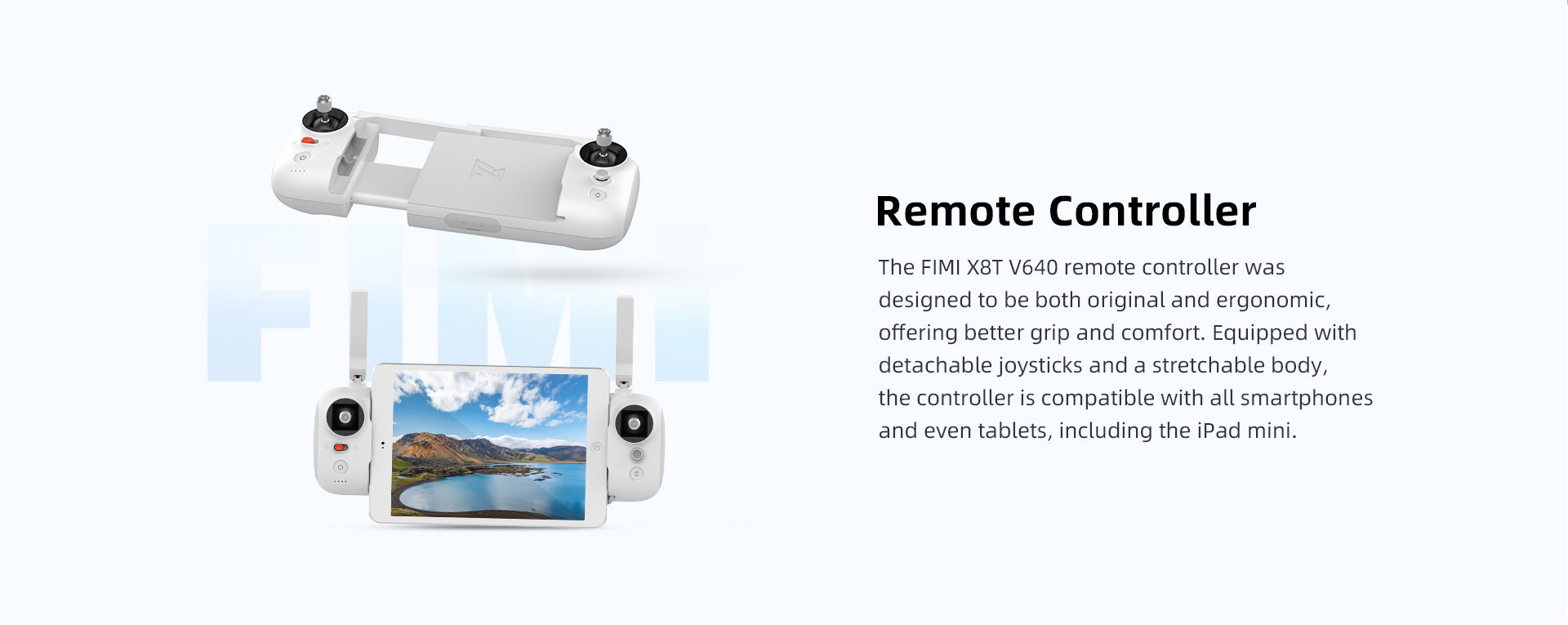

Remote Controller:
Product Weight: Approx.373g
Dimensions: 204 x 91 x 47mm
Operating Frequency: 2.4000 GHz-2.4835 GHz/5.725 GHz-5.850 GHz
Max Battery Life: 8 hours *Without charging the mobile device; 4 hours *Charging the mobile device(Tested with mobile device battery level above 95%, actual results may vary based on different mobile devices and their battery levels at the time of testing)
Battery Type: Li-ion
Battery Capacity: 3900mAh
Nominal Voltage: 3.7V
Input: 5V=2A
Operating Temperature Range: 0-40°C
Charging Temperature Range: 5-40°C
FIMI X8T Max Signal Effective Range, (No interference, no obstruction) FCC: Approximately 20 KM (The above data is measured in an outdoor open environment without interference and is the farthest communication distance for one-way non-return flights under various standards. Please pay attention to the app's return prompts during actual flights)
Minimum Latency: Approx.120 milliseconds
Supported Mobile Device Interface Types: Lightning, USB-C

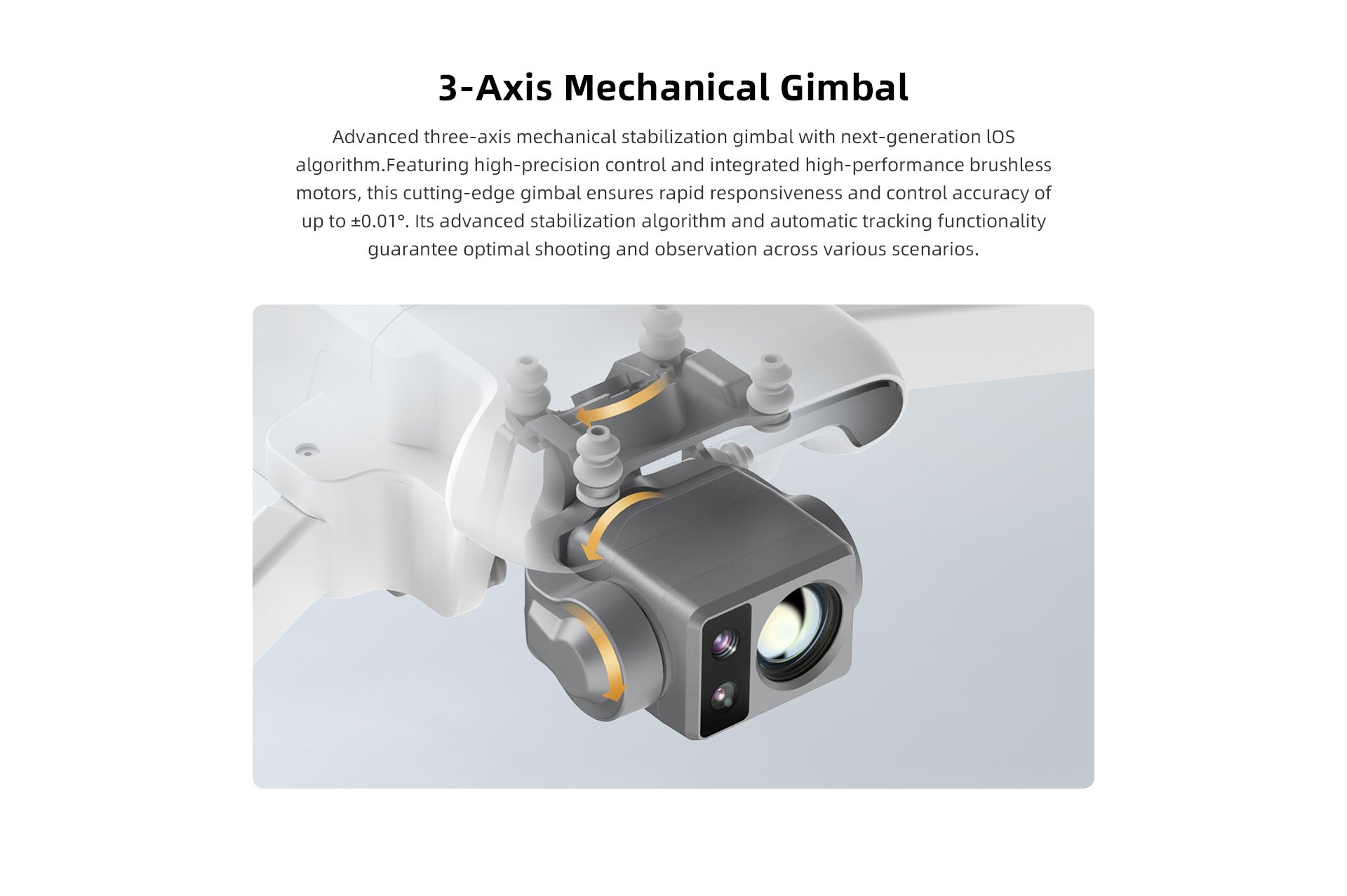

Gimbal:
Three-axis mechanical gimbal (Pitch, Roll, Yaw)
Pitch: -115° to 40°
Roll: -40° to 40°
Yaw: -40° to 40°
Controllable Rotation Range: 10° to -90° (Pitch)
Angular Vibration Range: ±0.005°

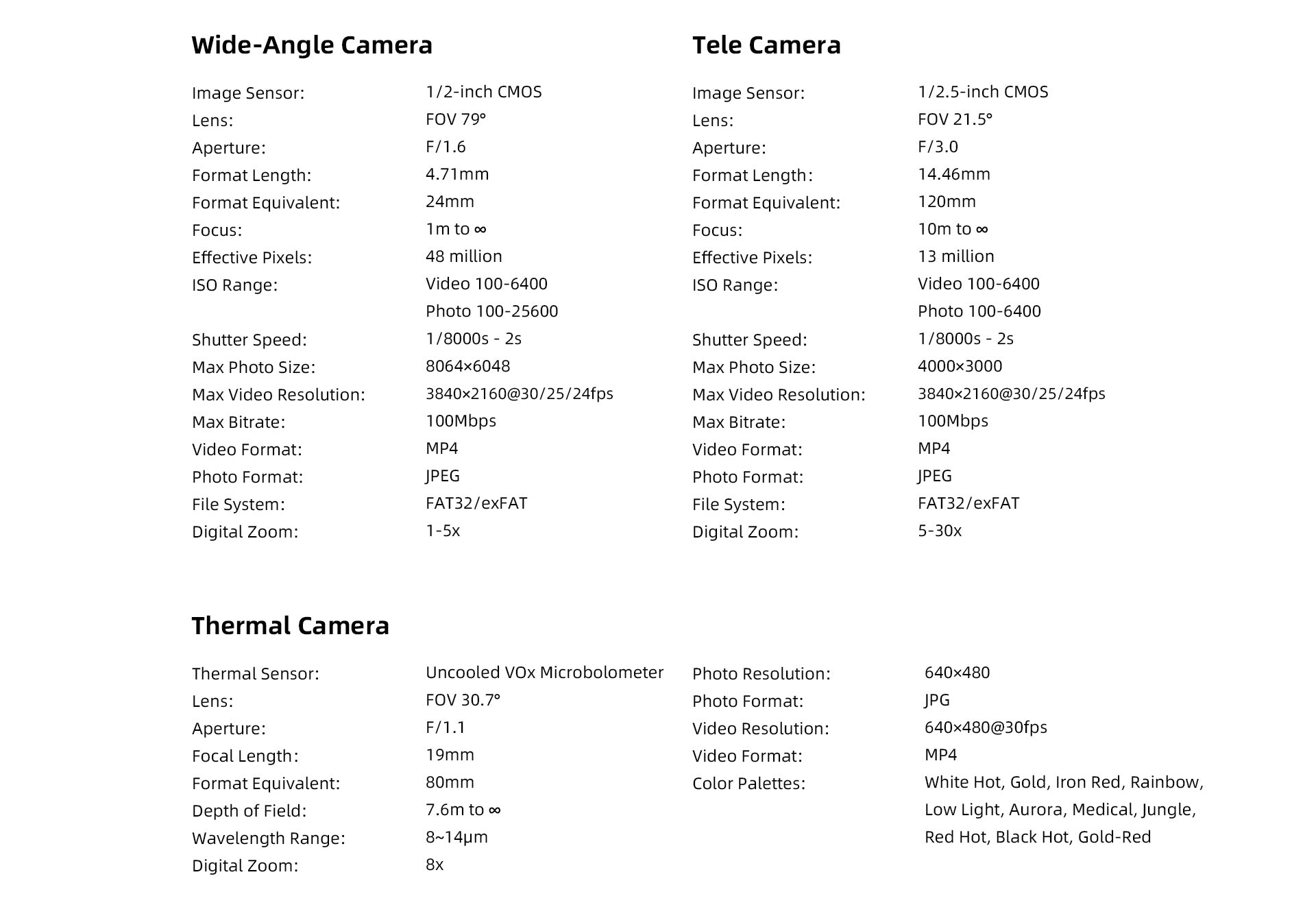

Camera:
FIMI X8T Wide-Angle Camera:
Image Sensor: 1/2-inch CMOS
Lens: FOV 79°
Aperture: F/1.6
Format Length: 4.71mm
Format Equivalent: 24mm
Focus: 1m to infinity
Effective Pixels: 48 million
ISO Range: Video Manual 100-6000, Video Automatic 100-25600, Photo 100-6400
Shutter Speed: 1/8000s-2s
Max Photo Size: 8064×6048
Max Video Resolution: 3840×2160@60/30/25/24fps
Max Bitrate: 100Mbps
Video Format: MP4
Photo Format: JPEG/DNG
File System: FAT32/exFAT
Digital Zoom: 1-5x
FIMI X8T Camera:
Image Sensor: 1/2.5-inch CMOS
Lens: FOV 21.5°
Aperture: F/3.0
Format Lenght: 14.46mm
Format Equivalent: 120mm
Focus: 10m to infinity
Effective Pixels: 13 million
ISO Range: Video 100-6000, Photo 100-6400
Shutter Speed: 1/8000s-2s
Max Photo Size: 4000×3000
Max Video Resolution: 3840×2160@30/25/24fps
Max Bitrate: 100Mbps
Video Format: MP4
Photo Format: JPEG/DNG
File System: FAT32/exFAT
Digital Zoom: 5-30x
FIMI X8T Thermal Camera:
Thermal Sensor: Uncooled VOx Microbolometer
Lens: FOV 30.7°
Aperture: F/1.1
Focal Length: 19mm
Format Equivalent: 80mm
Depth of Field: 7.6m to ∞
Wavelength Range: 8~14um
Digital Zoom: 8x
Photo Resolution: 640x480
Photo Format: JPG
Video Resolution: 640x480 @ 30fps
Video Format: MP4
Color Palettes: White Hot, Gold, lron Red, RainbowLow Light, Aurora, Medical, jungle,Red Hot, Black Hot, Gold-Red

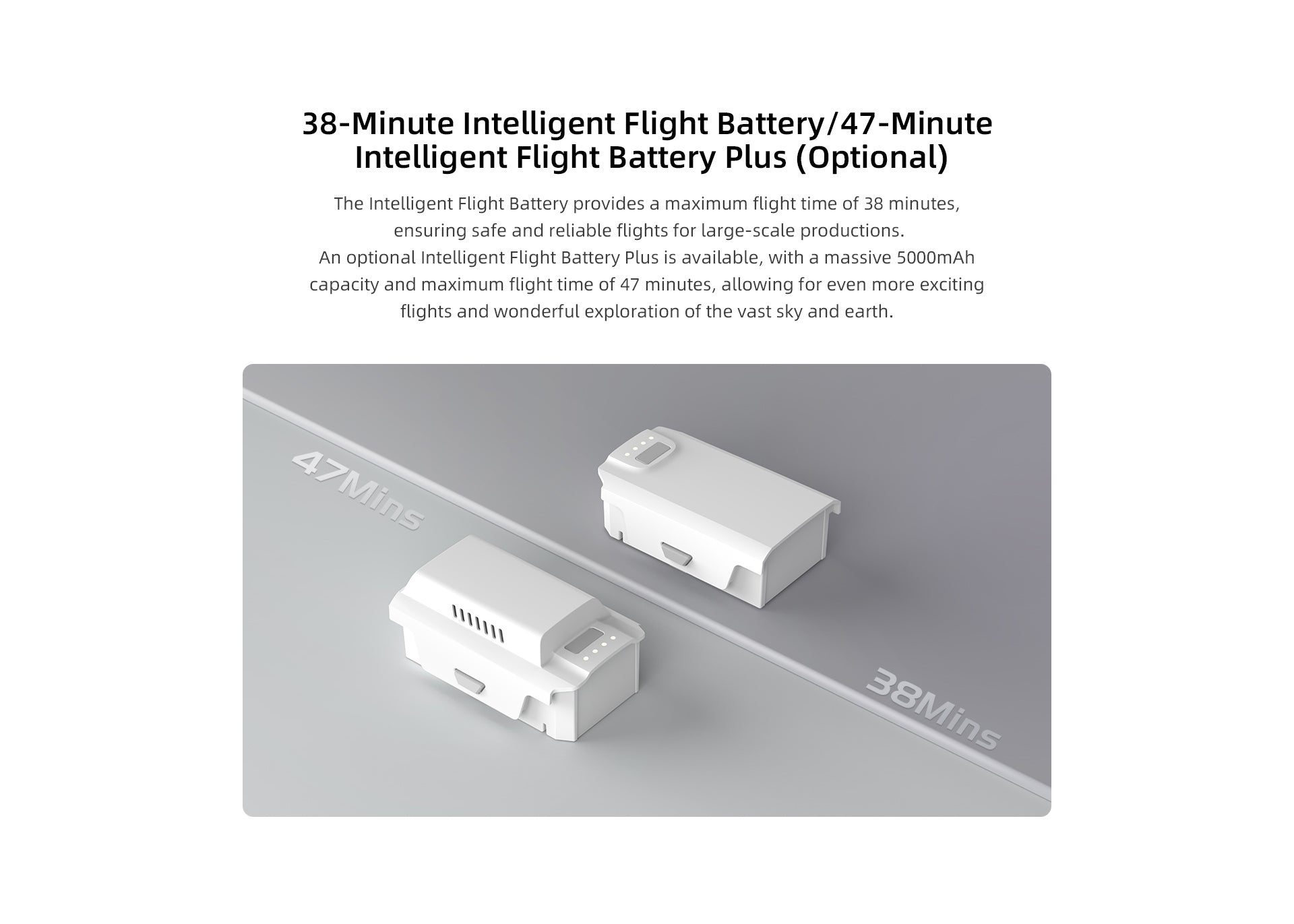

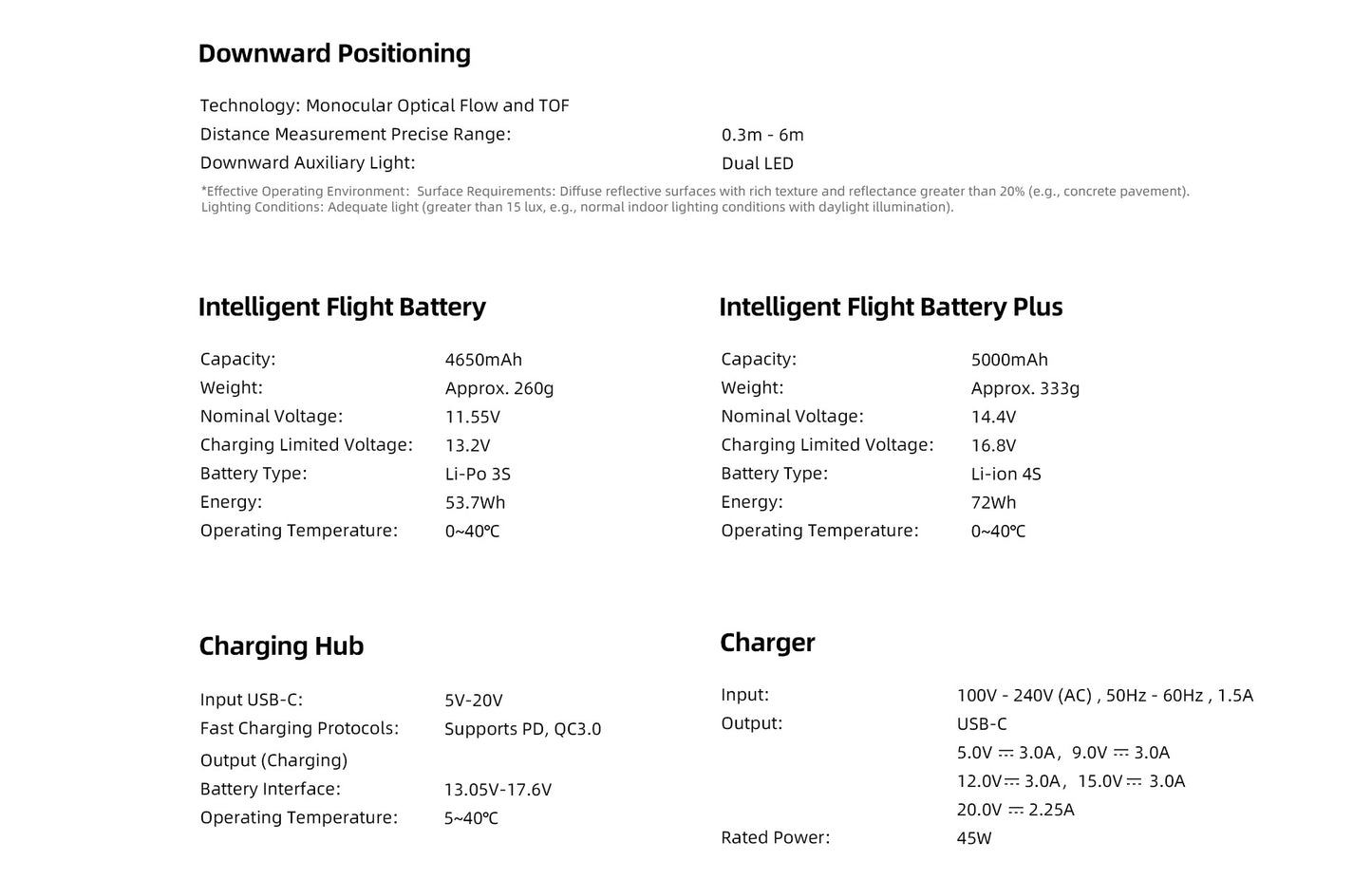

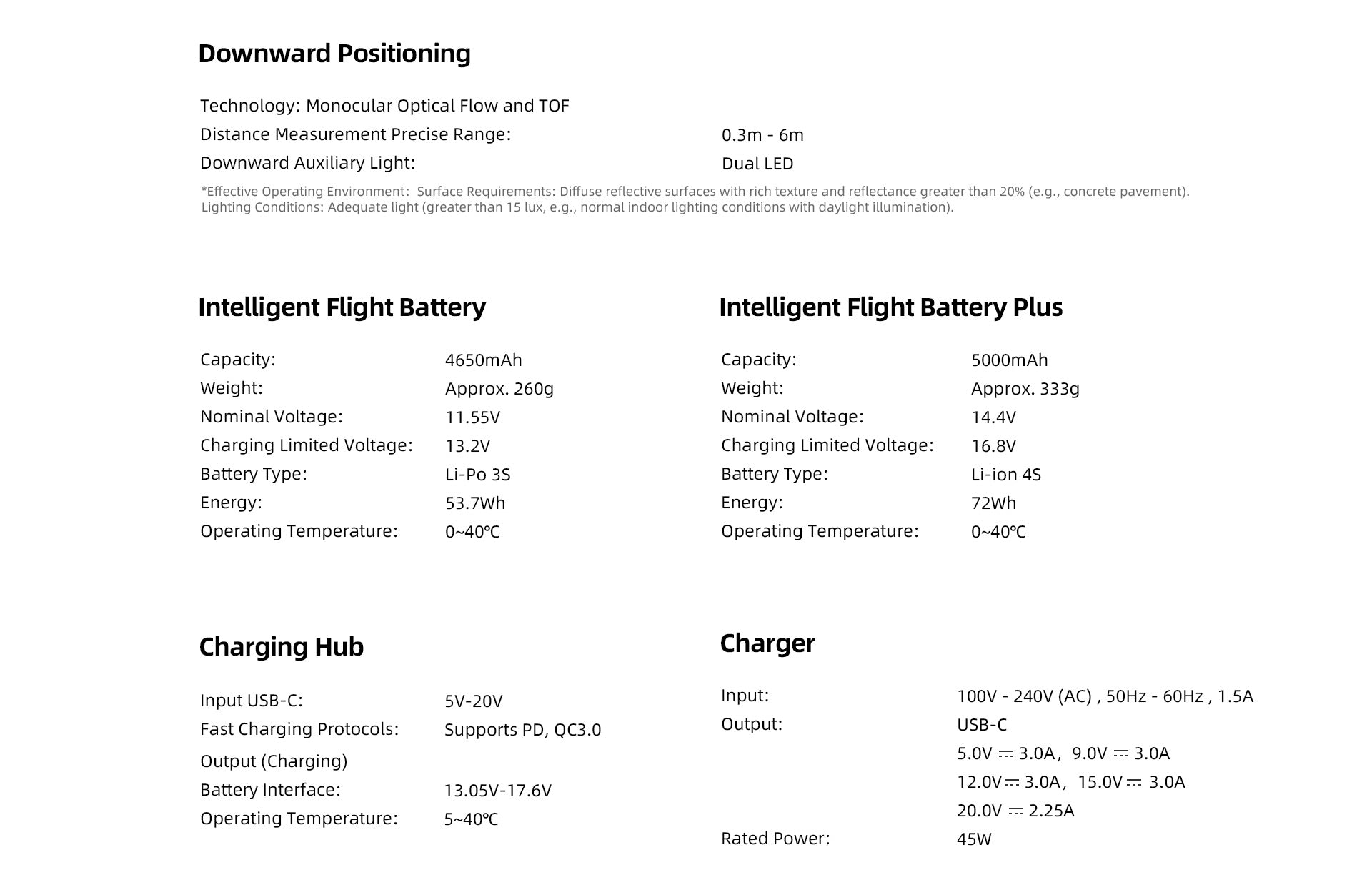

Intelligent Flight Battery Plus:
Capacity: 5000mAh
Weight: Approx.330g
Nominal Voltage: 14.4V
Charging Limited Voltage: 16.8V
Battery Type: Li-ion 4S
Energy: 72Wh
Charging Time: Approx.110 minutes
Main Features:

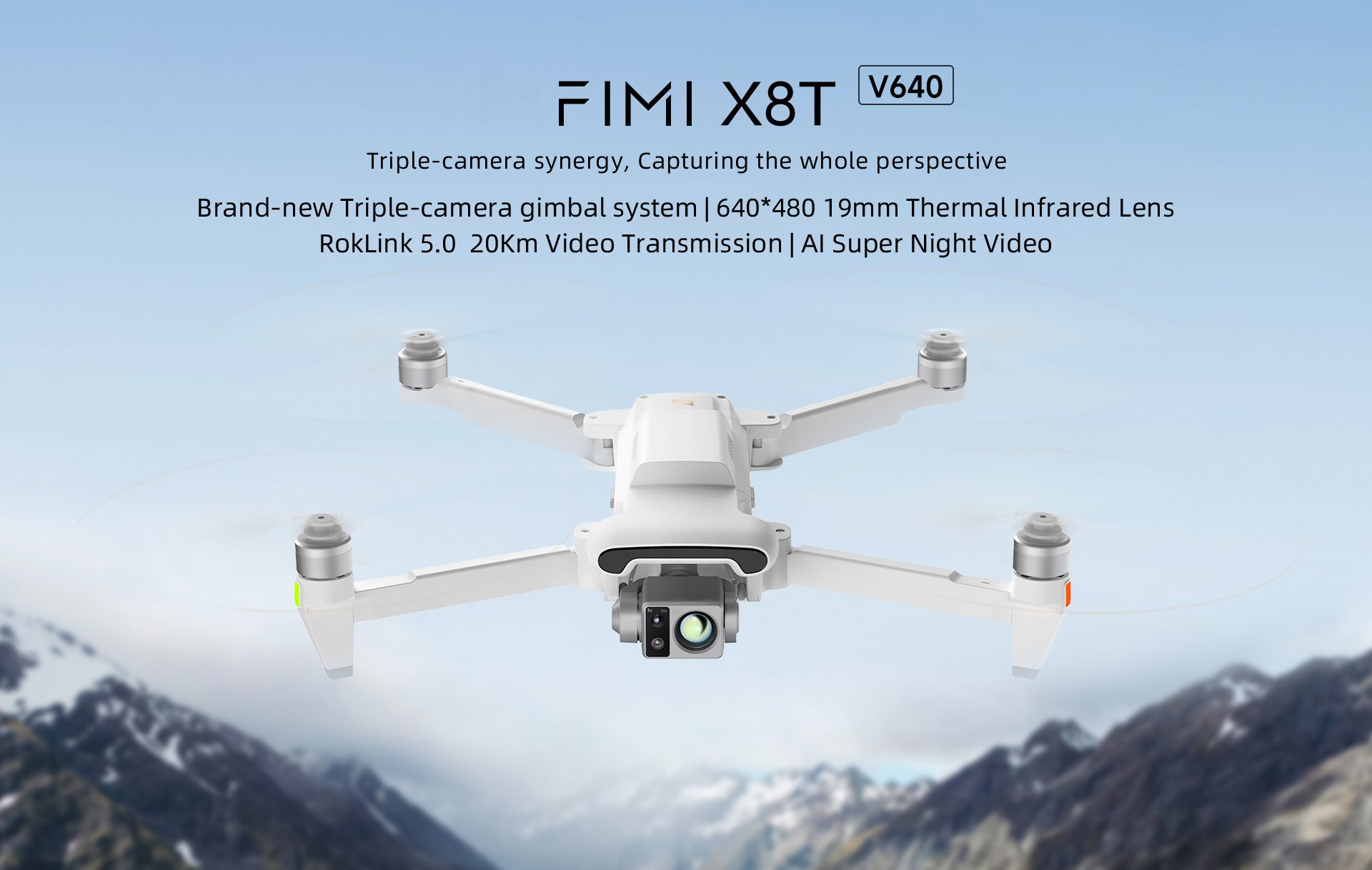

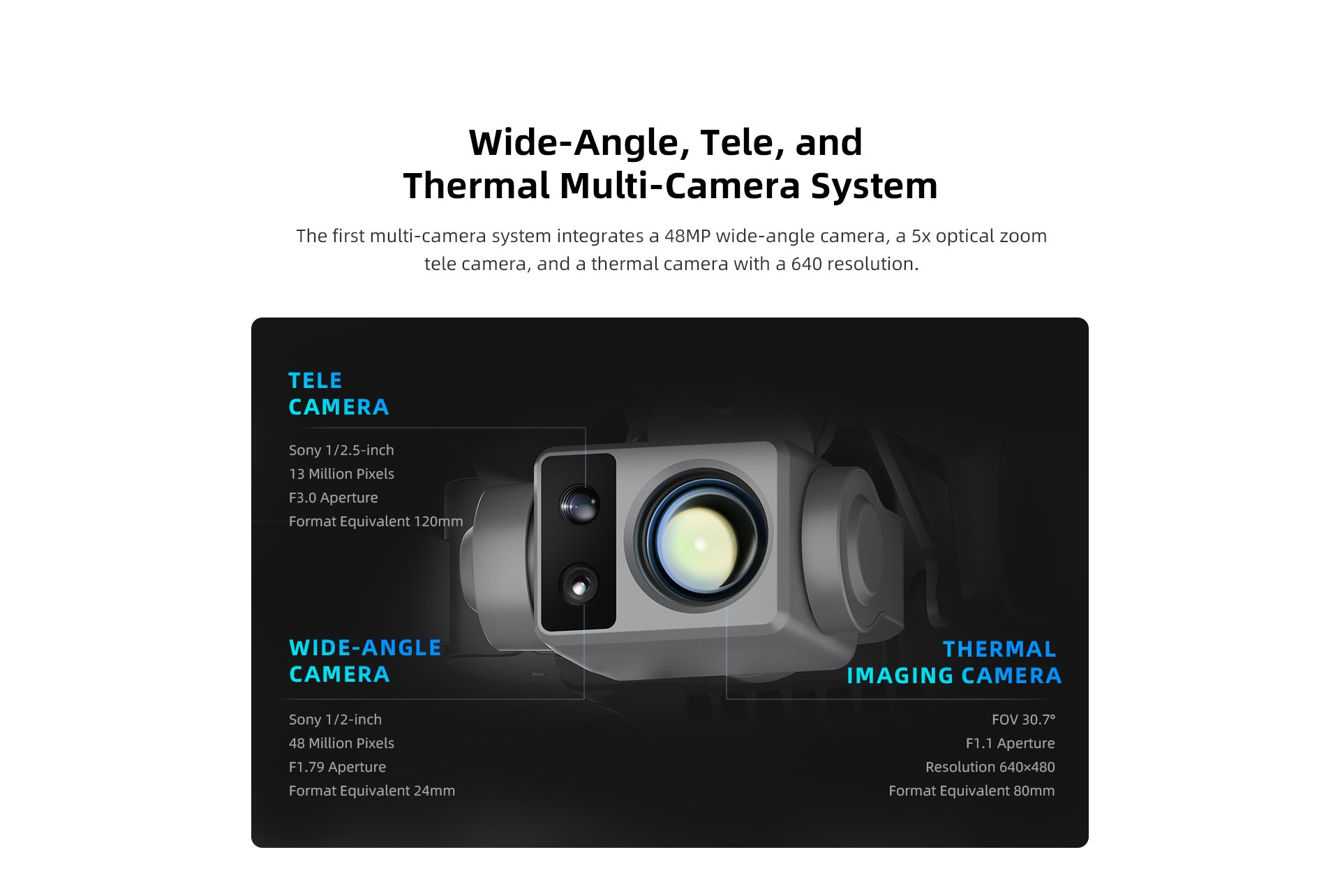

1. Wide-Angle, Tele, and Thermal Multi-Camera System：
FIMI X8T is first multi-camera system integrates a 48MP wide-angle camera, a 5x optical zoom tele camera, and a thermal camera with a 640/384 resolution.
FIMI X8T wide-angle camera features a Sony 1/2-inch sensor, supports 4K/30fps video recording, and works in tandem with the tele camera to achieve 30x hybrid zoom, capturing expansive views and distant details with precision.

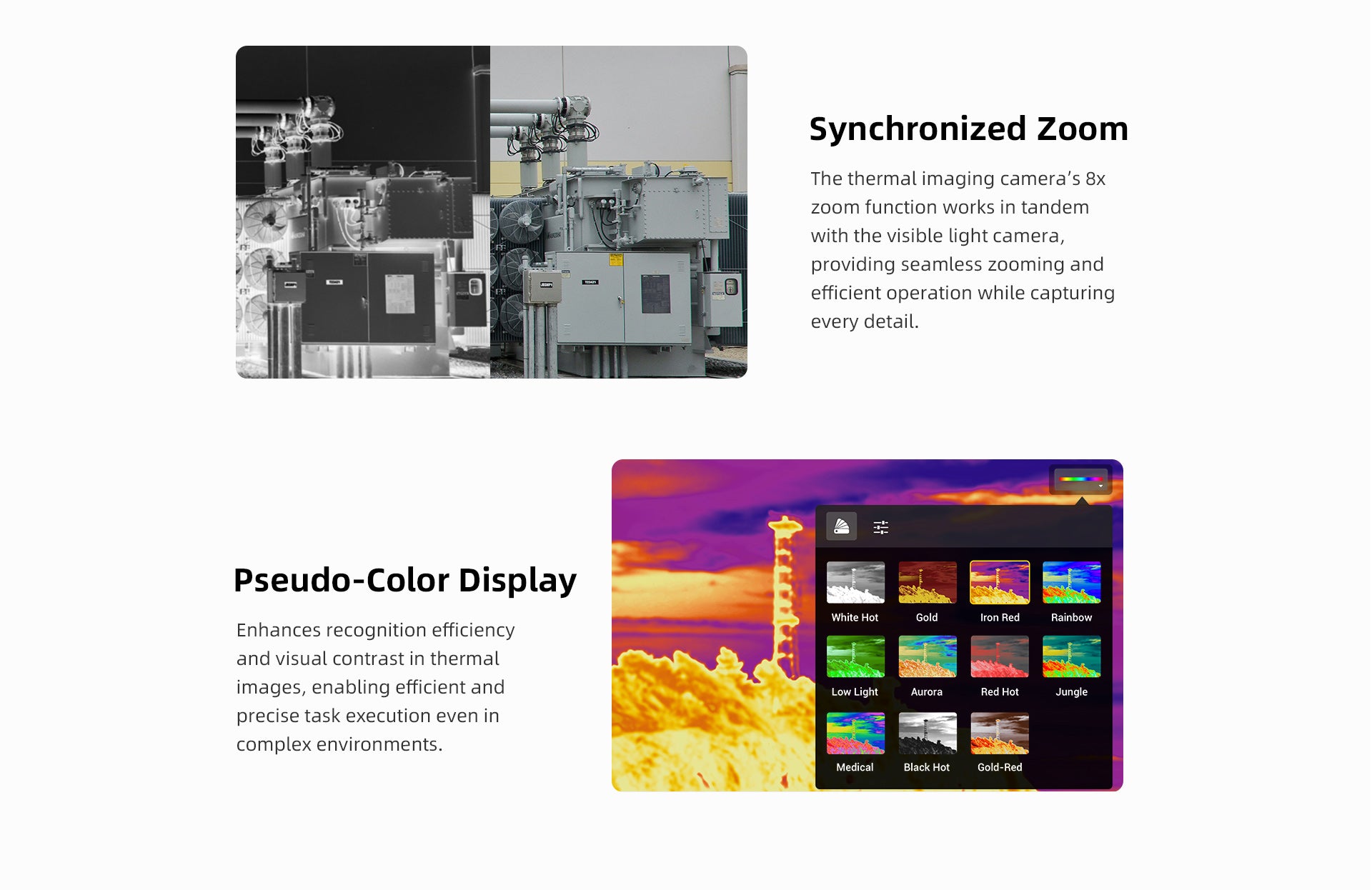

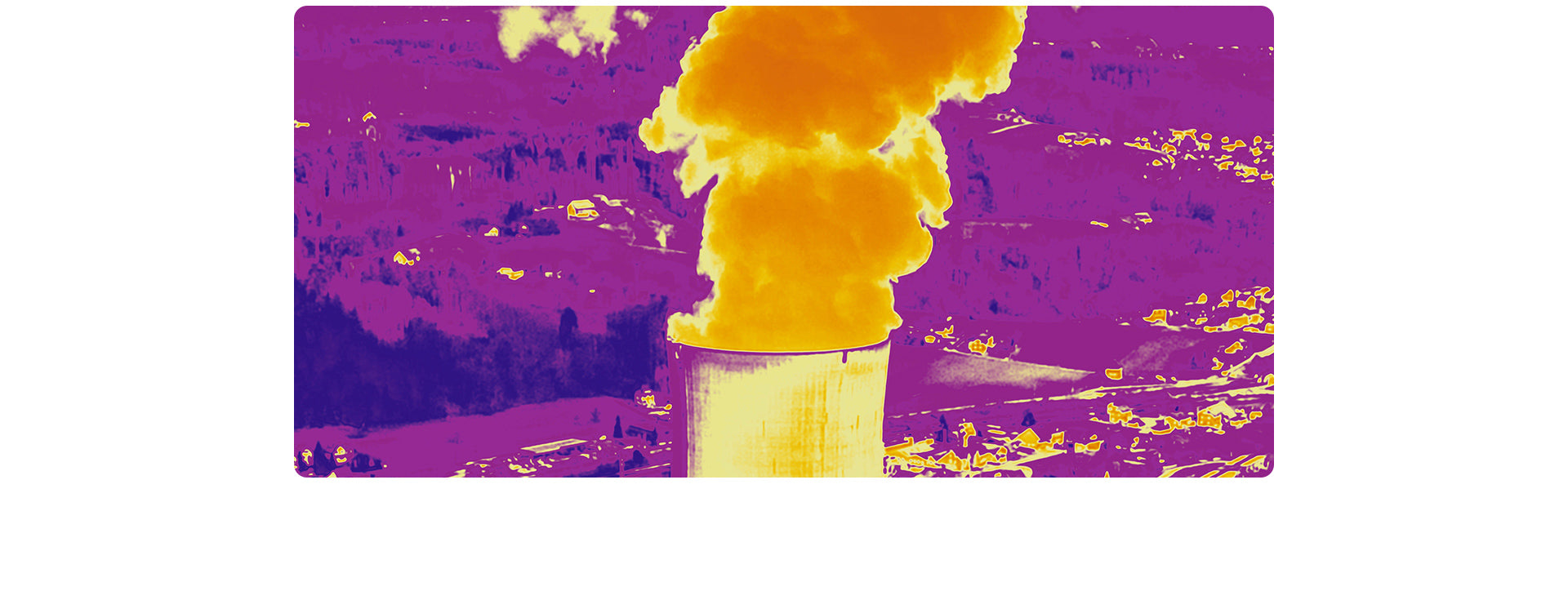

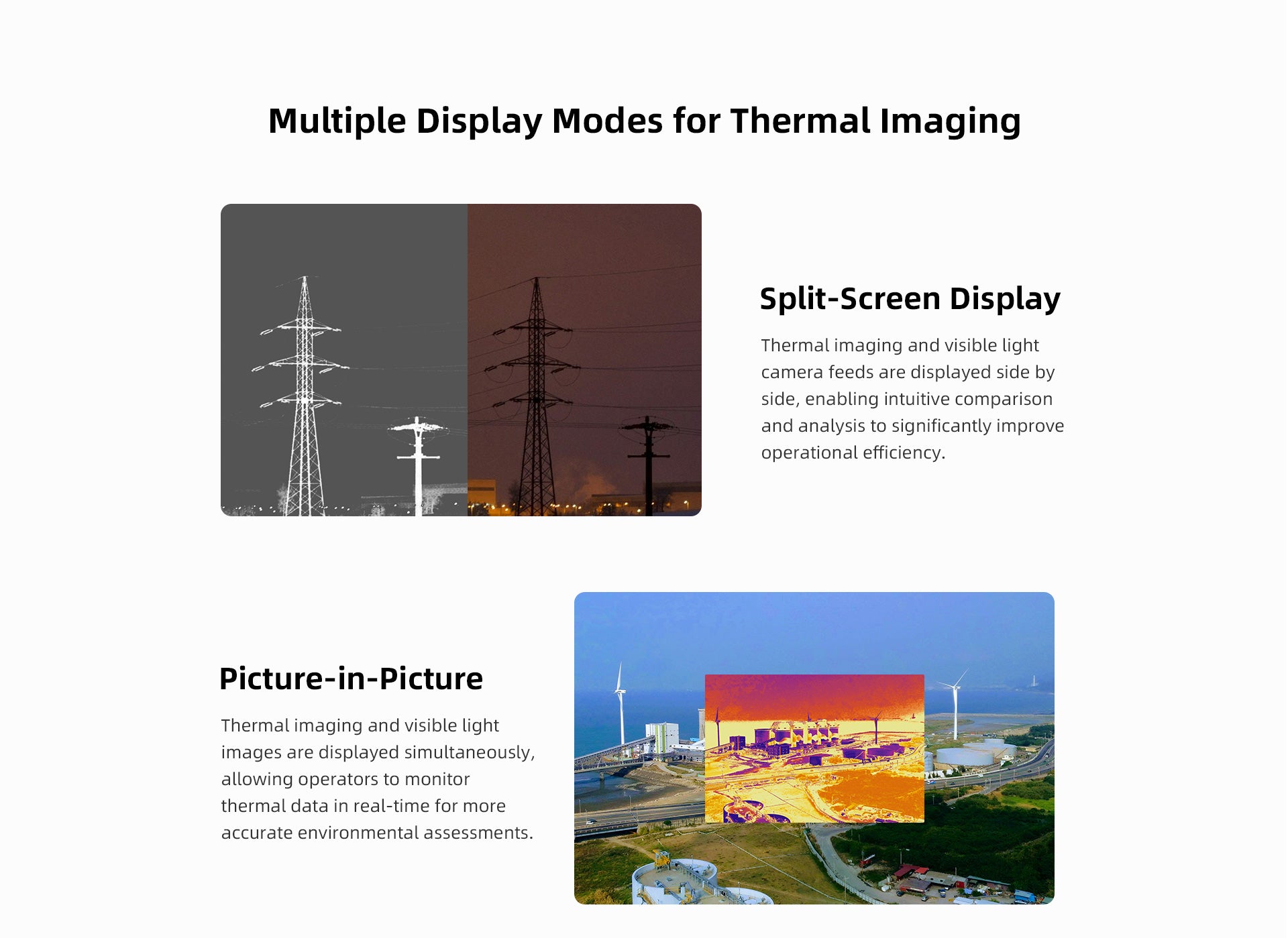

FIMI X8T thermal camera, equipped with a 19mm tele lens, offers a resolution of 640*480/384*288, enabling rapid target detection to support operational decision-making. Its diverse display modes—split screen, picture-in-picture, synchronized zoom, and pseudo-color imaging—meet the needs of various scenarios such as security monitoring, industrial inspections, building diagnostics, and outdoor exploration.
2. 4K/60fps Video：
FIMI X8T Supports 4K/30fps high-speed video recording, each frame is full of lively details, and sports scenes are smoother and silkier.
3. FIMI X8T using new Generation RokLink 5.0 20KM digital Video Transmission System：
The RokLink 5.0 system features enhanced RF sensitivity and improved adjacent frequency suppression. Leveraging modern communication technologies, it supports adaptive fast frequency hopping and dynamic modulation and coding, intelligently detecting electromagnetic interference and automatically adjusting uplink and downlink bandwidth. This ensures stable and clear image transmission with a range of up to 20 km and ultra-low latency as low as 120 ms, capturing distant landscapes with an immersive experience.
4. AI Super Night Video：
FIMI X8T using latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.
